ECS1000 – SV-ECS & Commercial ECS Solution
“ECS1000TZ is a commercial electronic charting system featuring a powerful marine navigation PC with TimeZero software with S57/63 charts, a Class A AIS, and advanced charting for professional and workboat use.”
From: $4,995.00
- Description
- SPECIFICATIONS
- Manuals & Downloads
Description

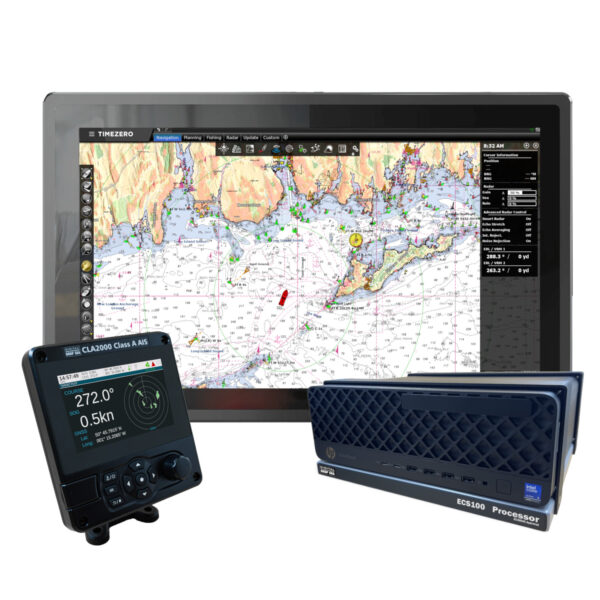

ECS1000
Type Approved SV-ECS &
Commercial ECS System
A commercial electronic charting system featuring a powerful approved marine navigation PC with TimeZero software with S57/63 charts, a Class A AIS, and advanced charting for professional and workboat use.
Flexible ECS Solutions
From a display-only system to a fully integrated ECS, AIS and software package, choose the configuration that best matches your vessel and compliance requirements.
ECS100
S185
CLA2000

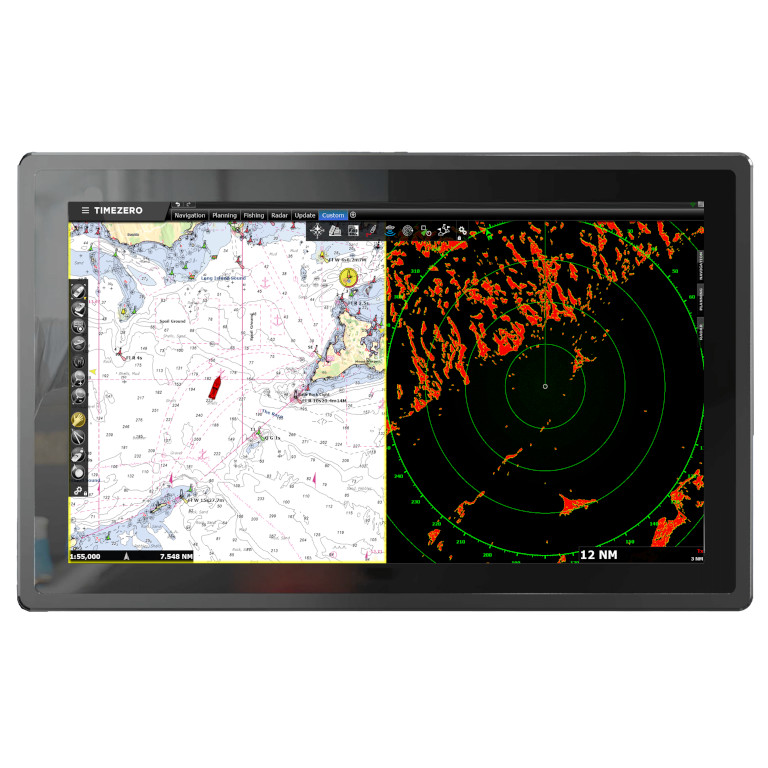

S57/S63 Charting with TimeZero Software
ECS100 / ECS COMPUTER
High-Performance
Marine ECS Computer
The ECS100 is a maritime PC system approved to IEC60945 and also accepted by ABS, LR, DNV, KR, RINA, CCS and BV ship classification societies. As such it can be used as a bridge PC for a multitude of applications such as electronic charting (ECS), onboard communications, CCTV/thermal/AI camera or even general ship and yacht IT requirements.
It forms the heart of Digital Yacht’s ECS1000 electronic charting solution for smaller commercial vessels and large superyachts. It is supplied fitted to a custom antivibration mounting platform for easy horizontal mounting to meet the regulatory requirements.
A NVidia RTX A400 graphics card is fitted, capable of supporting up to 4 monitors with HD and UHD graphics so it’s an ideal processor for multi screen glass bridge applications such as TimeZero Pro with chart, radar, camera and sounder options. Windows 11 Professional is pre-installed and licenced.

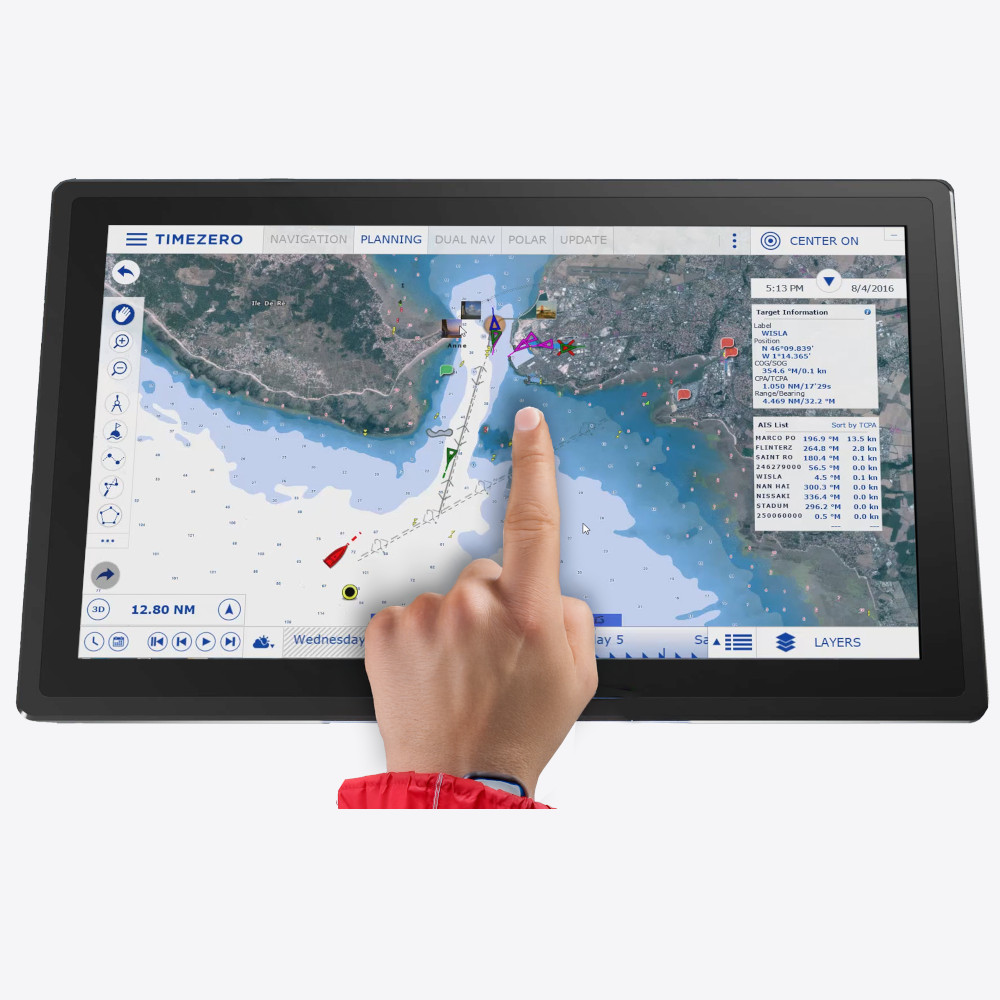

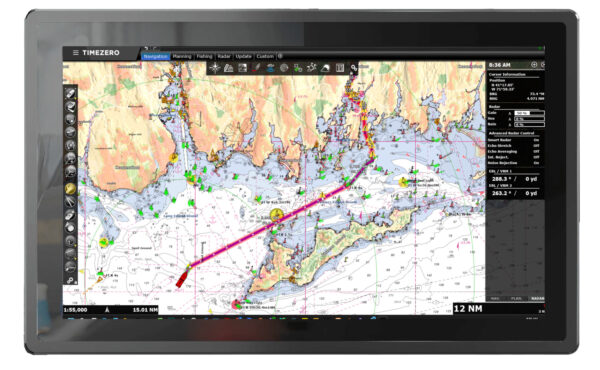

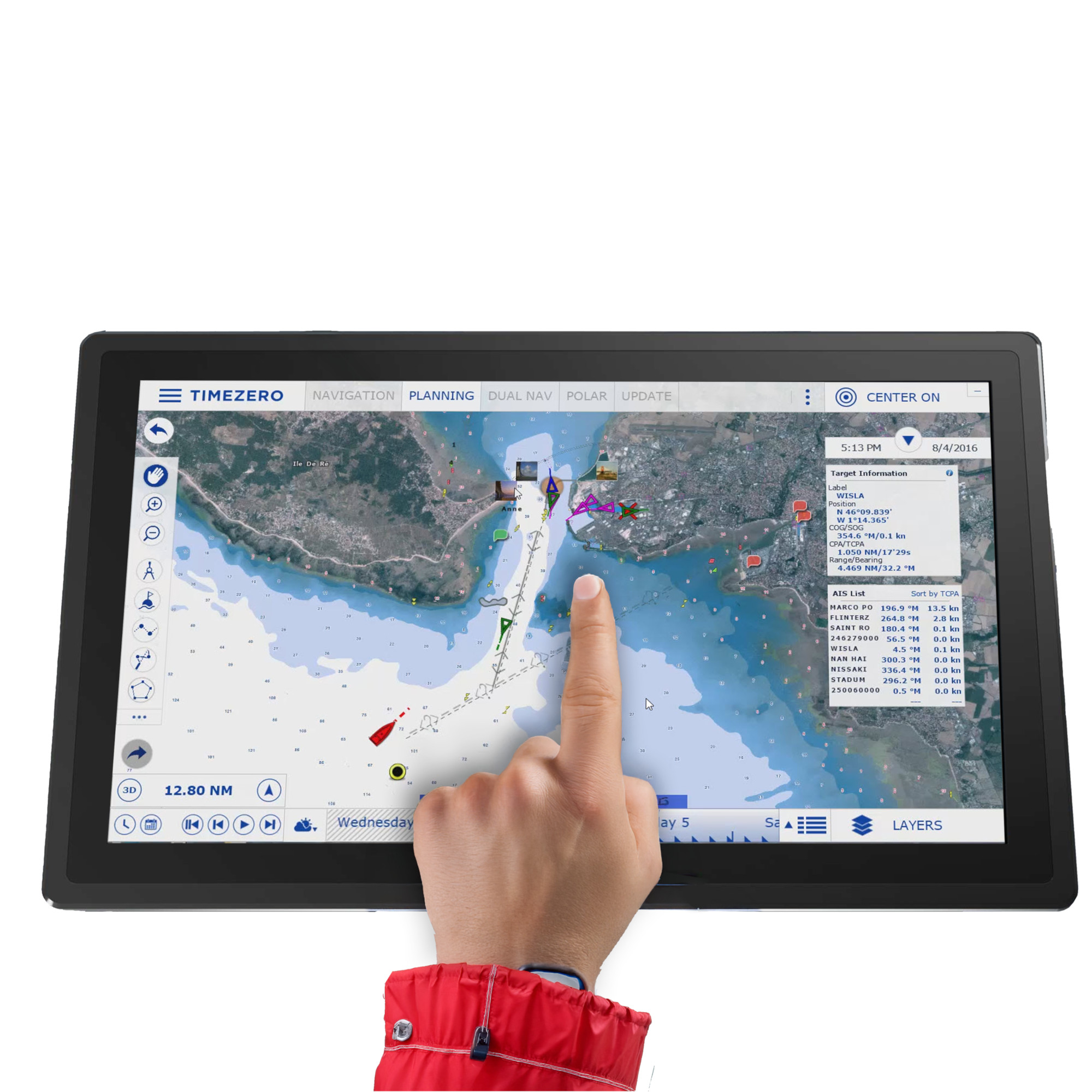

S185 / HELM DISPLAY
Hi-bright
Touchscreen Monitor
It is supplied with a hi-bright, HD resolution S185 touchscreen monitor which supports charting software control such as pinch to zoom and panning and an on-screen keyboard if a traditional keyboard and mouse is not required. S185 has many interfaces: HDMI, VGA, AV but also USB ports.
Front panel of the monitor is designed to carry IP65 rating which offer great level of protection against water. Once flush mounted, the monitor projects just 6mm from the front panel for a stylish and flush glass bridge display.

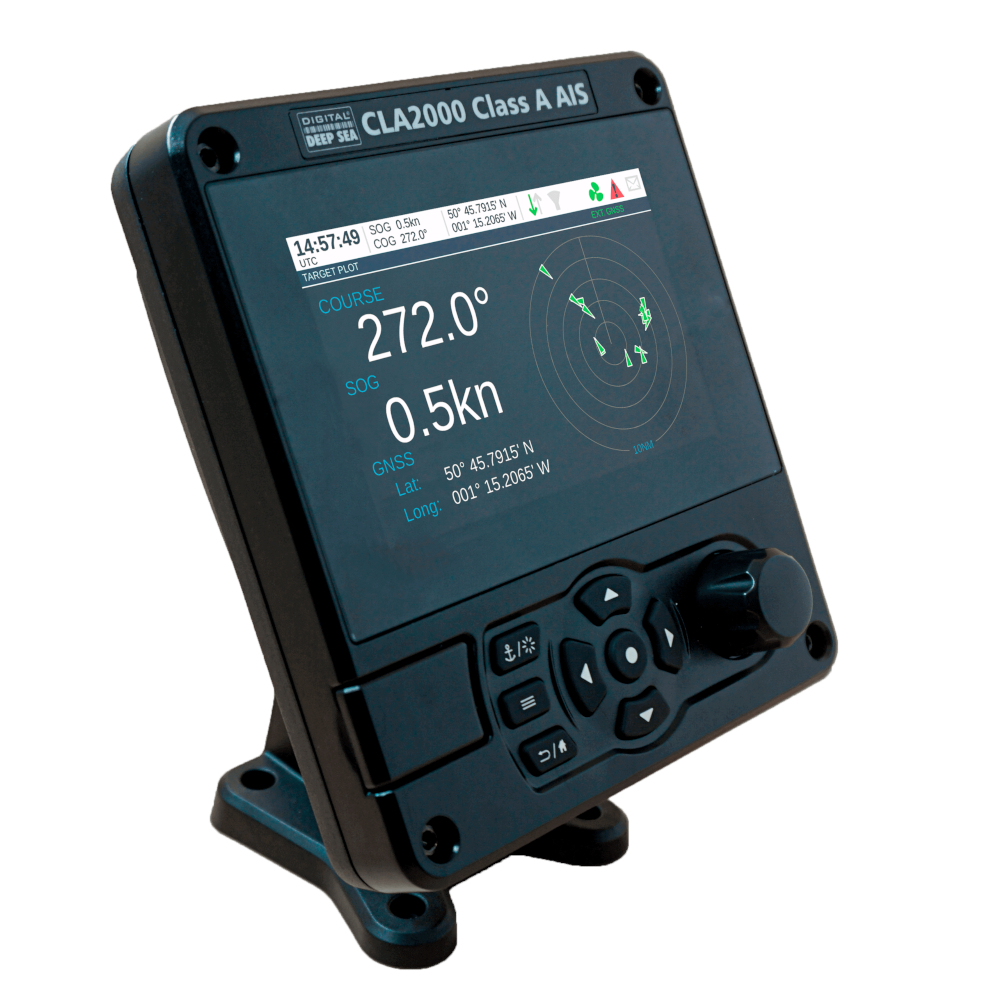

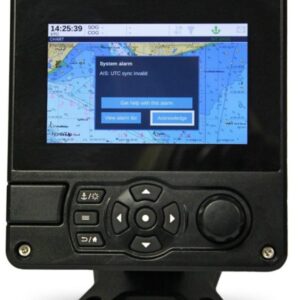

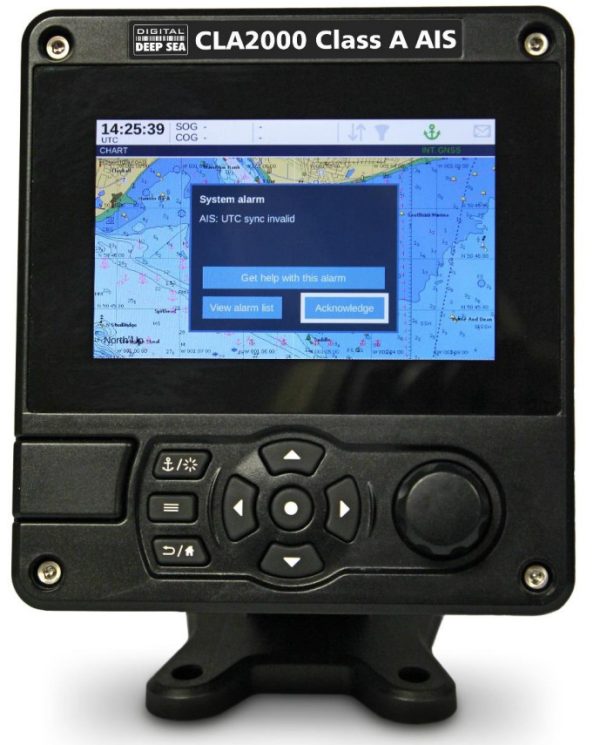

CLA2000 / AIS TRANSPONDER
Globally Approved
Class A AIS Transponder
The ECS1000 should connect to AIS and GPS/EPFD equipment. The CLA2000 is a IMO approved Class A AIS transponder with connectivity for the ECS1000 and also a NMEA wireless interface for iPads and tablets which can be used for back up navigation with suitable apps.
CLA2000 is the ultimate SOLAS and inland waterway globally approved Class A AIS transponder. Water and weather proof to IP67 and a full integrated 5” hi-res colour display. The CLA2000 supports a wide range of functionality including electronic chart navigation with optional C-Map MAX charting and AIS target management.
S57 & S63 / CHARTS
Professional S57/S63
Charting with
TimeZero Software

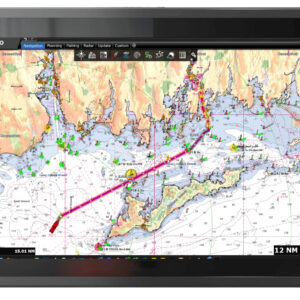

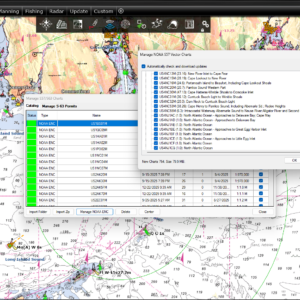

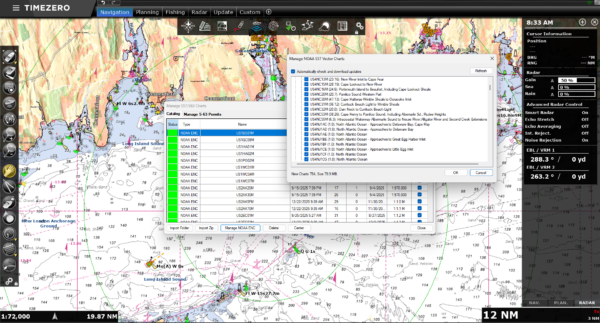

The TimeZero Professional ECS software is a powerful marine navigation solution designed to meet workboat regulatory requirements while delivering advanced charting and operational capabilities. It includes encrypted S57 NOAA chart support with automatic updates, ensuring accurate and up-to-date navigation data at all times.

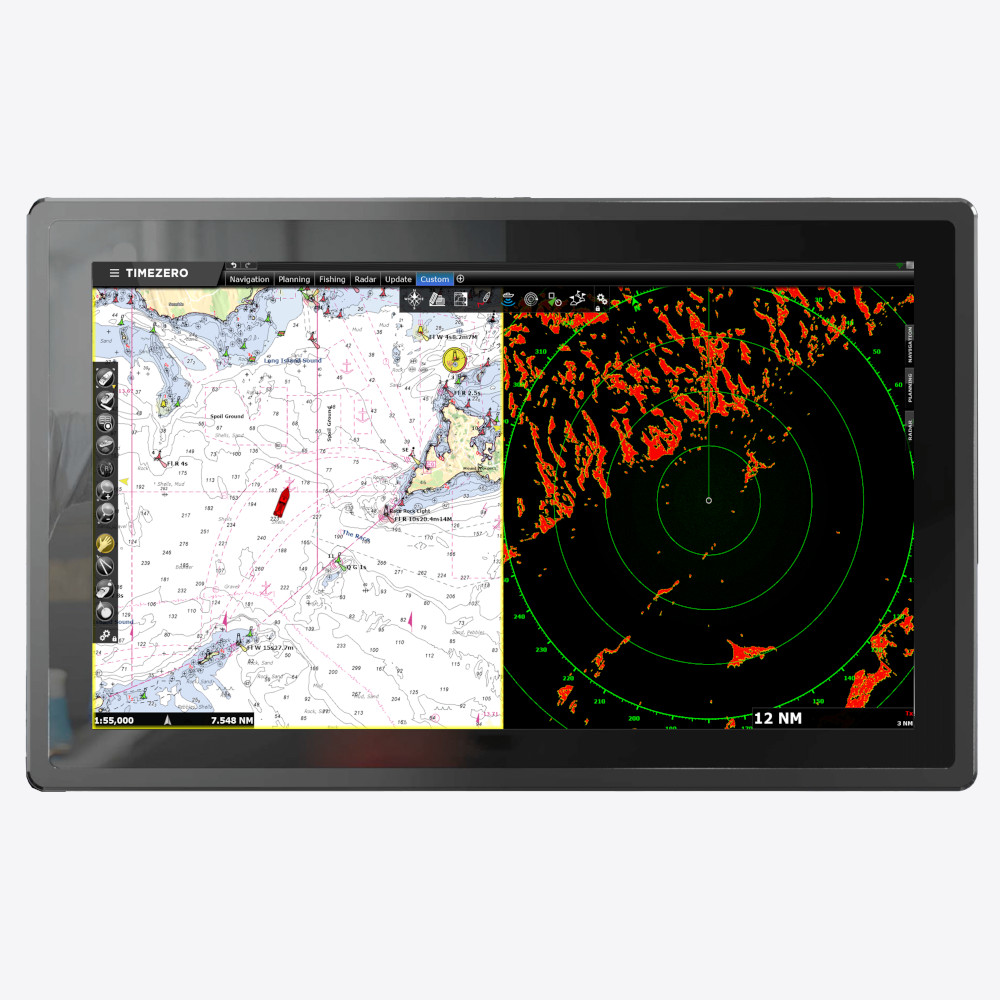

The system offers flexible display options such as multiple chart views, split screens (including North Up and Course Up), and multi-monitor support with independent or mirrored displays. Users benefit from comprehensive route planning tools with safety checks, along with unlimited waypoints, tracks, routes, and custom boundaries.

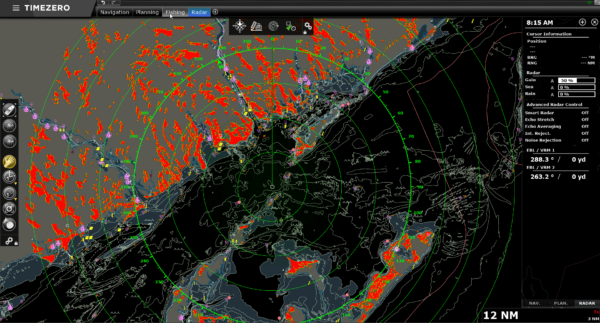

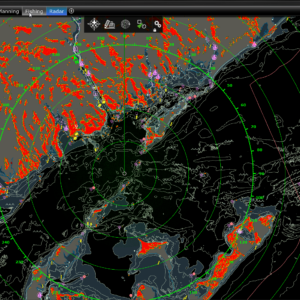

Integrated tidal databases provide U.S. tidal heights and currents, while full AIS target overlays and MARPA graphics enhance situational awareness. The software supports seamless integration with GPS, AIS, radar, and onboard instruments via NMEA 2000, and offers optional radar and sounder compatibility.

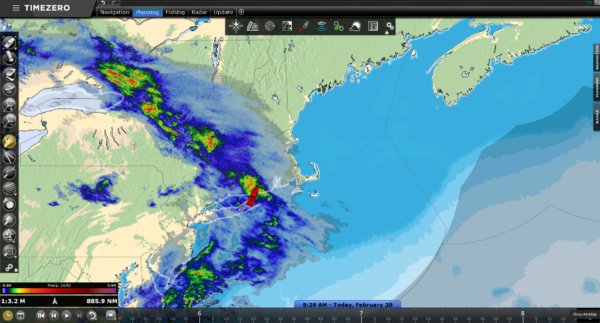

Additional features include customizable alarms (depth, CPA, TCPA, anchor), weather overlays, and intuitive touchscreen operation with programmable keyboard controls, making it a versatile and user-friendly solution for professional marine environments.

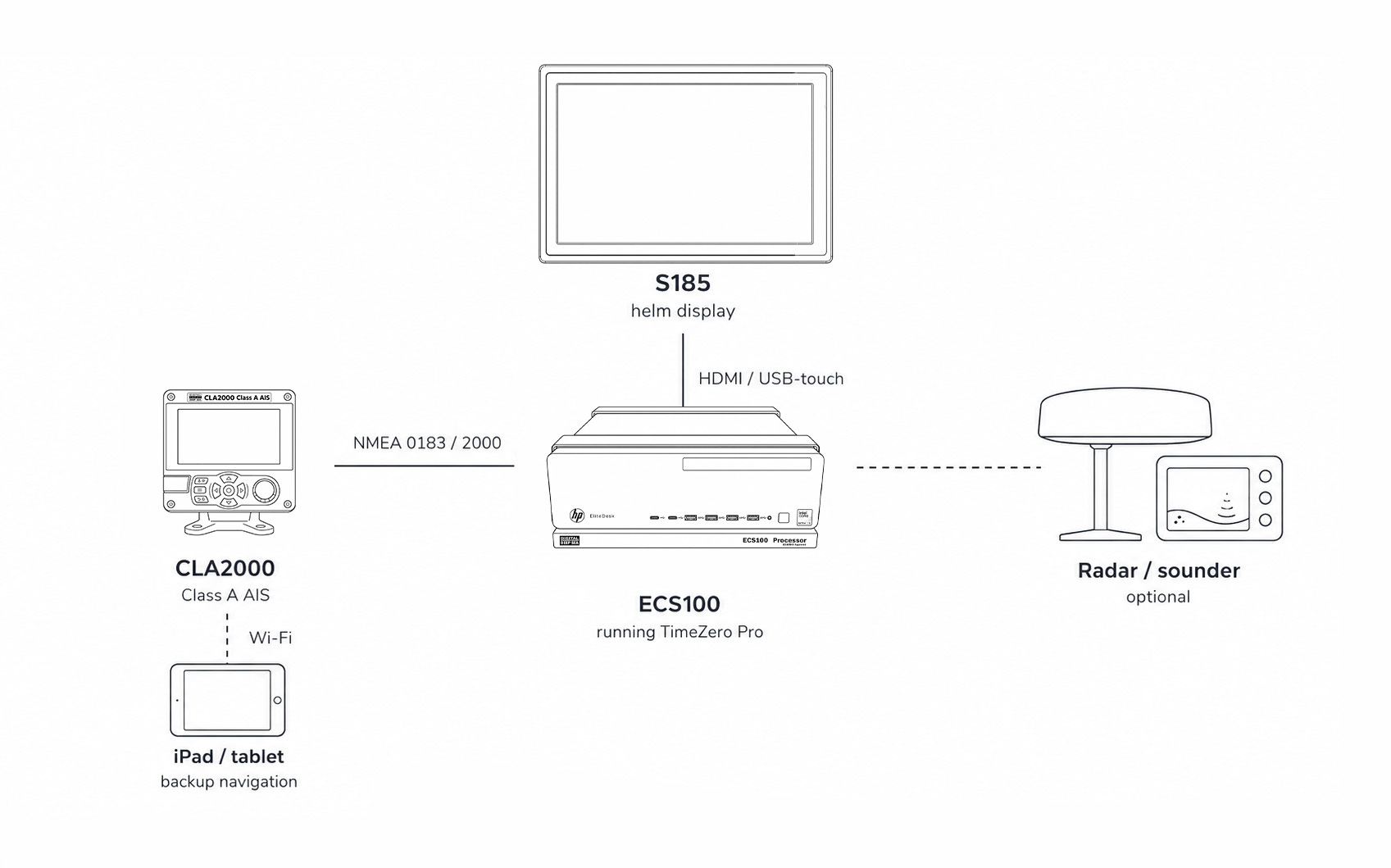

SYSTEM ARCHITECTURE
One system, fully wired.
ECS100 runs TimeZero and drives the display. CLA2000 feeds position and traffic over NMEA — and keeps working even if the PC doesn't.
- ECS100 is an IEC 60945 approved and American Bureau of Shipping (ABS) certified marine computer
- Intel Core Ultra 5 processor with 24MB L3 cache (14 core)
- Windows 11 Pro operating system (pre-installed)
- 16GB RAM and 1TB ruggedised SSD hard drive
- Integrated wired Intel LAN (Gigabit)
- Integrated Bluetooth 6
- Integrated 802.11be wireless networking
- Nvidia RTX A400 integrated graphics with 4 x display support (mini DP connectors)
- Supports 5K video resolution (5120 x 2880) at 60Hz
- 9 x USB ports (USB-C and USB-A)
- 2 x USB-C ports support 20Gbps
- Supplied with IEC60945 approved AC supply (110/220v), optional 12/24v DC operation
- Supplied with keyboard and mouse, compatible with any USB pointing device or keyboard
- TimeZero Professional with S57/63 charting package (US)
- TimeZero Professional ECS software meets workboat regulations
- S57 NOAA charting with auto updates. S57 module included in package
- Multiple chart display and split screen options (eg: North Up/Course Up)
- Multi monitor capable with independent displays or mirroring
- Multiple chart layers
- Planning route safety check
- Unlimited waypoints, marks, tracks, user boundaries, routes etc
- Tidal database with US tidal heights and currents
- Full AIS target overlays
- Easy touch screen operation with user keyboard keys for specific operations
- Interface to CLA2000 or other marine GPS and instruments. AIS and MARPA Graphic CPA/TCPA
- Multiple user alarms – depth, CPA, TCPA, anchor etc

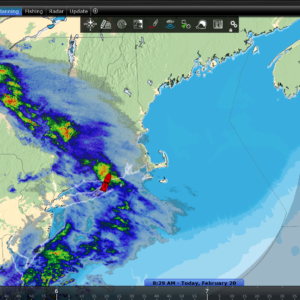

- Weather overlays
- NMEA 2000 integration with optional iKonvert interface
- Optional radar (Furuno FAR and DRS) and sounder integration
- S185 is a high-brightness (1000 nit) Full HD touchscreen monitor
- Optically bonded for exceptional brightness
- 1920 x 1080 resolution
- 12/24V DC operation (max 30W power draw)
- PCAP touchscreen for easy navigation, panning and zooming, even with gloved hands
- HDMI and VGA video inputs
- Composite video input for camera applications
- USB connection to PC for touchscreen controller
- Supports portrait and landscape display options from PC
- Auto-dimming sensor adjusts brightness based on lighting conditions
- Measures 475 x 295mm
- Panel cutout 460 x 280mm
- Compatible with standard 75 and 100mm VESA wall, dash, pole and table mounts
- Built tough with IK07 impact resistance
- CLA2000 is a globally approved Class A AIS transponder
- High-resolution 800 x 480 pixel 5” colour display (MKD) with fast, easy-to-use interface
- Bracket or flush mount – waterproof to IPX7
- Integrated GPS with external antenna (supplied) or external NMEA feed (user selectable)
- 3 x NMEA 0183 interfaces (bi-directional for plotter, ECDIS, radar, etc.)
- 3 x sensor input ports (e.g. BlueBoard, external GNSS, gyro, etc.)
- NMEA 2000 interface
- Built-in SD card slot for AIS data port logging or C-Map MAX mapping (optional C-Map data card)
- Built-in Wi-Fi for connection to iPads and tablets for wireless navigation
