ATN500 – DiGAToN Lite

ATN500 - DiGAToN Lite - Image 1
ATN500 - DiGAToN Lite - Image 2

ATN500 – DiGAToN Lite

“The Digaton Lite is a fully certified Type 1 AIS AtoN with an internal rechargeable battery and integrated antenna for easy AIS buoy and hazard marking.”

$2,199.95

SKU: ZDIGATN500

ATN500 – DiGAToN Lite

$2,199.95

In stock

Description

KEY FEATURES

Certified Type 1
AIS AtoN

4G Xtream is our latest, premium LTE (cellular) internet access on board product with a NMEA 2000 interface.  It ships as a complete package with dual external antennas, deck mounting hardware and cabling.  Alternative antenna mounts are available as options.

Using MIMO technology and two external wide band LTE antennas, it offers fast connectivity at up to 300 MBs (network dependent).  It has a built in dual band wifi router supporting multiple connections, dual SIM slots (with auto fail over if required), built in GPS (for anchor alarm & tracking applications) as well as an NMEA 2000 interface for navigation and instrument data connectivity and wireless interfacing.  There’s also a Bluetooth interface for future connectivity applications.

FEATURES

  • Certified AIS AtoN Type 1 (FATDMA operation – supports message #21)
  • 1W ERP

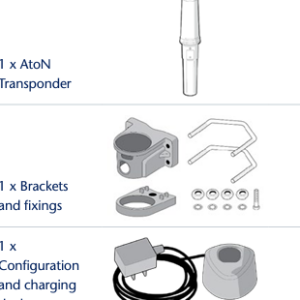

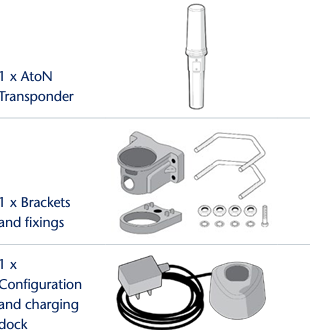

  • Provided with required mounting/fixings to install in minutes on any buoy/structure.
  • Bracket will fit rails 25-55mm diameter
  • Internal battery (2100mAH) for up to 5 days with 5 minute reporting interval autonomous operation – optional DC power cord for permanent installations
  • Real time transmission of buoy position using certified AIS Type 1 transmissions
  • Small and very light weight
  • Ruggedized for prolonged external installation and operation in any environment (IPX7)
  • Programmable with PC software for MMSI and AtoN data
  • Just 375 x 67mm and weighs 350g
  • Optional light sensor kit to check navigation aid operation

ATN500 Specifications
Transceiver ATN500
Physical Specification
Dimensions 375mm × 67mm max. (H × D)
Weight 350g (AtoN Express unit only)
Mounting bracket Supports 25mm to 55mm poles (D)
VHF Transceiver
Transmitter x1
Frequency 156.025 to 162.025MHz in 25kHz steps
Radiated Power (EIRP) 1W
Environmental
Waterproof IP67
Operating temperature -15°C to +55°C
ATN500 Functions
Type 1 FATDMA operation Yes
Message #21 transmission Yes
Standards Compliance
AIS Certification IEC62320-2 Edition 1 (2008-03); ITU-R M.1371-5; Universal AIS Technical Characteristics
Environmental standard IEC60945:2002-08
Product Safety EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011
GPS performance standard IEC61108-1:2003-07
Electrical Specification
Power supply Internal 2100mAh Lithium-Ion battery pack
Operating time Up to 5 days operation at 5 minute reporting interval
Optional External power supply (12 to 24VDC)
External power External supply <0.5Ah/day with 5 minute position reporting interval
