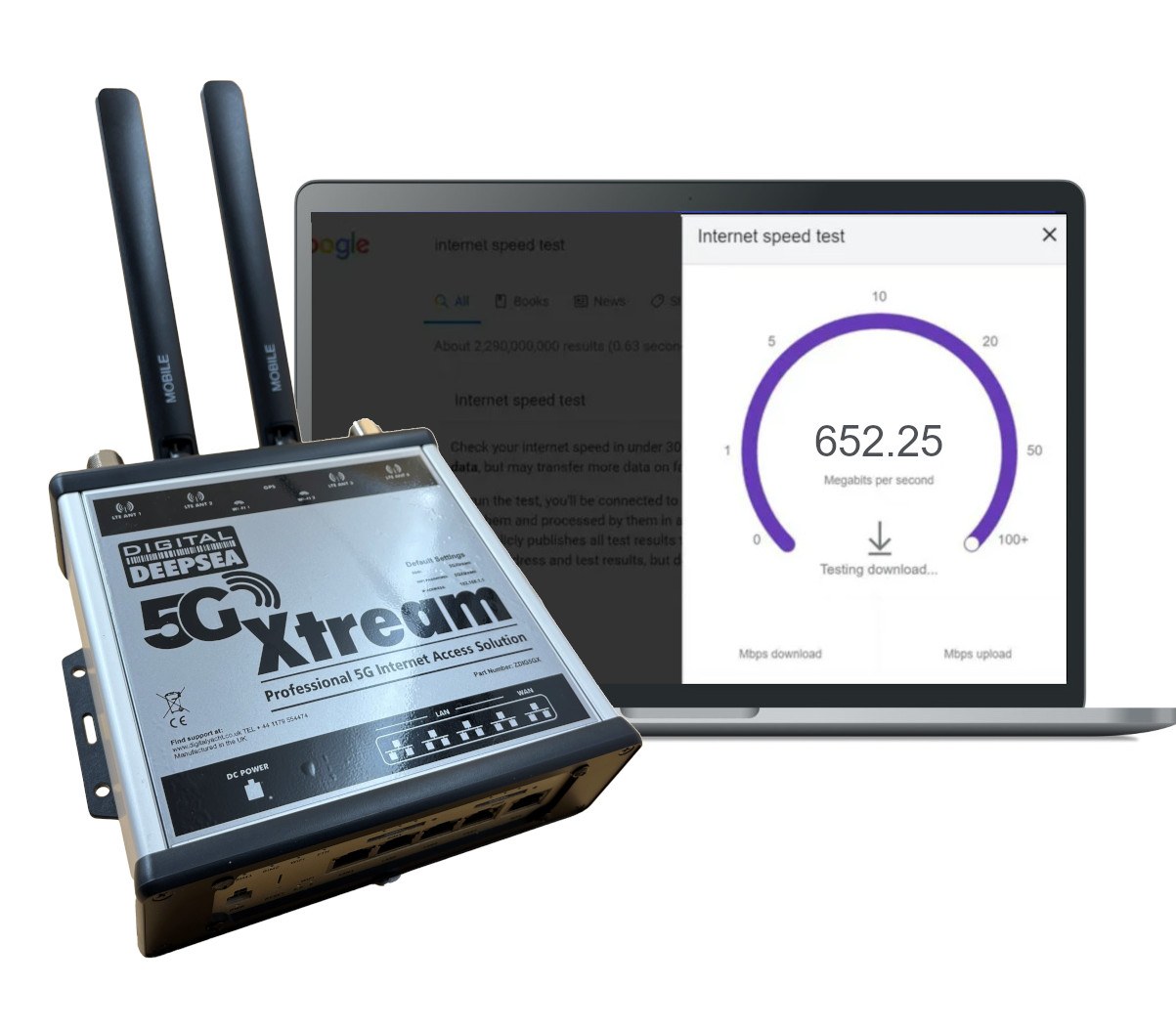

5G Xtream

$2,295.00

“The 5G Xtream offers ultra fast connectivity up to 3.1GBs and is supplied with three external antennas for optimal performance.”

KEY FEATURES

For boat owners looking for ultra-fast internet on board, the new 5G Xtream from Digital Yacht offers 4G and 5G connectivity as well as integration with Starlink satellite systems for the best and affordable blended internet afloat.

The 5G Xtream can support 5G (shoreside) connection speeds up to 3.1GB/s but also integrates a 4G Cat 20 modem which offers connectivity up to about 25NM from shore at speeds of up to 2GB/s.  The system uses three external antennas with dual high gain vertical antennas and a separate compact dome for the higher 5G frequencies.  This MIMO technology and critically, separate antennas, gives optimum performance.  There’s support for dual SIMs with auto (failover) or manual switching between operators.

The 5G Xtream features dual band (2.4 & 5GHz) wireless connections so users on board simply search for the secure wifi point and connect.  There’s also 4 LAN ports (10/100/1000MBs) for wired devices like Smart TVs and a WAN port which is optimised for Starlink satellite connectivity allowing the 5GX to act as a sophisticated and fast router for all on board internet communications.

The Wi-Fi router can also be configured to access marina wifi hotspots as an additional method of internet access.  This also supports the very latest 5GHz marina wifi services and there’s a high gain external wifi antenna also available as an accessory.

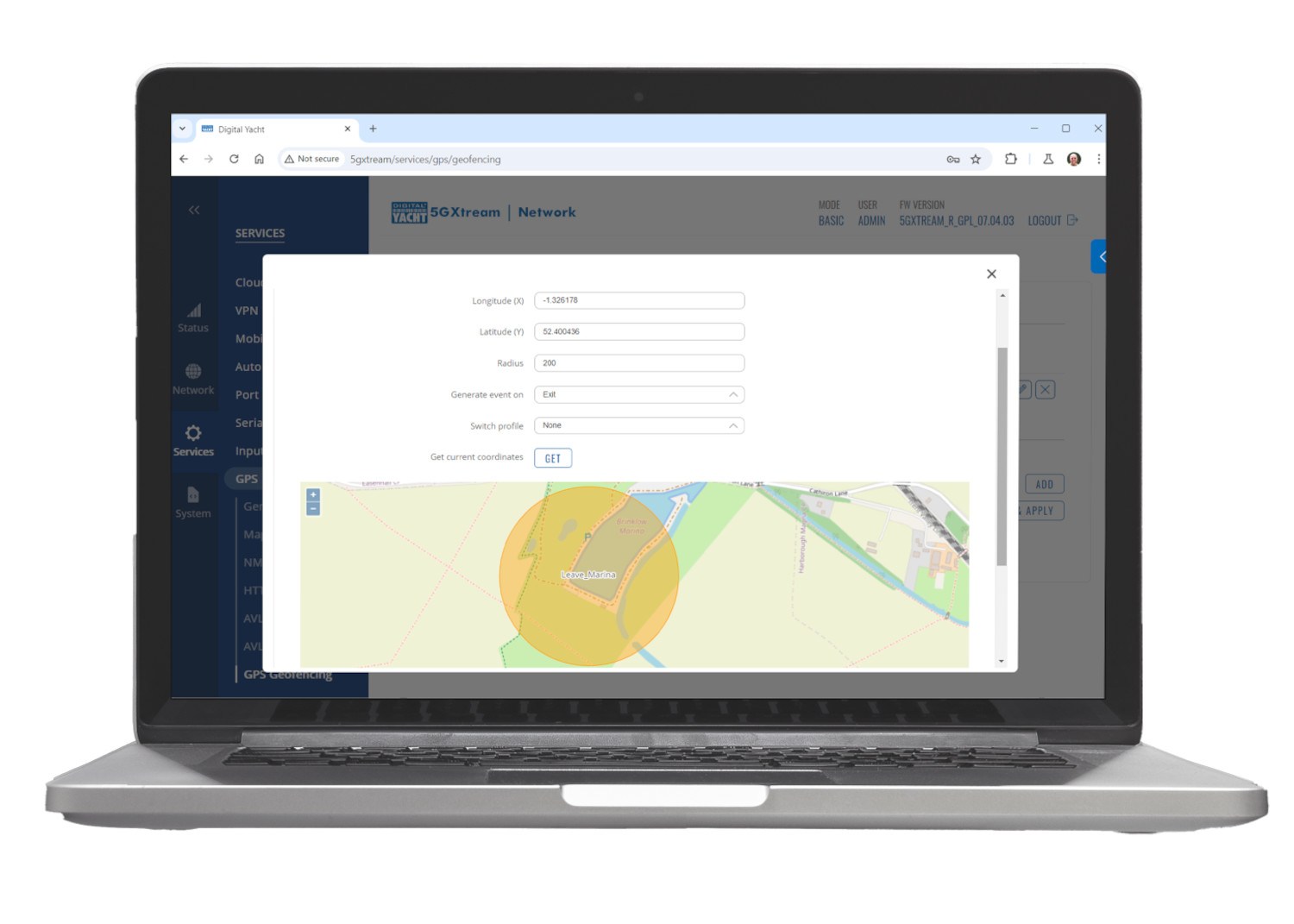

For advanced users, the 5G Xtream allows for user management, VPNs, blacklists and IOT applications.  NMEA 0183/2000 data can also be connected using Digital Yacht’s LANLink devices.   The integrated GPS allows for SMS reporting of boat position or even a geofence/drift setting when the boat is at anchor on in port.

The Digital Yacht 5G Xtream is supplied as a complete solution with antennas, mounts and cabling – all that’s additionally required is a cellular SIM.



FEATURES

  • Ultra fast 5G internet afloat solution with speeds up to 3.1GBs plus also integrates latest 4G Cat 20 LTE MIMO technology with range up to 25NM offshore (network dependent) and 4G connection speeds up to 2GBs
  • Dual SIM slots with auto fail over or manual selection

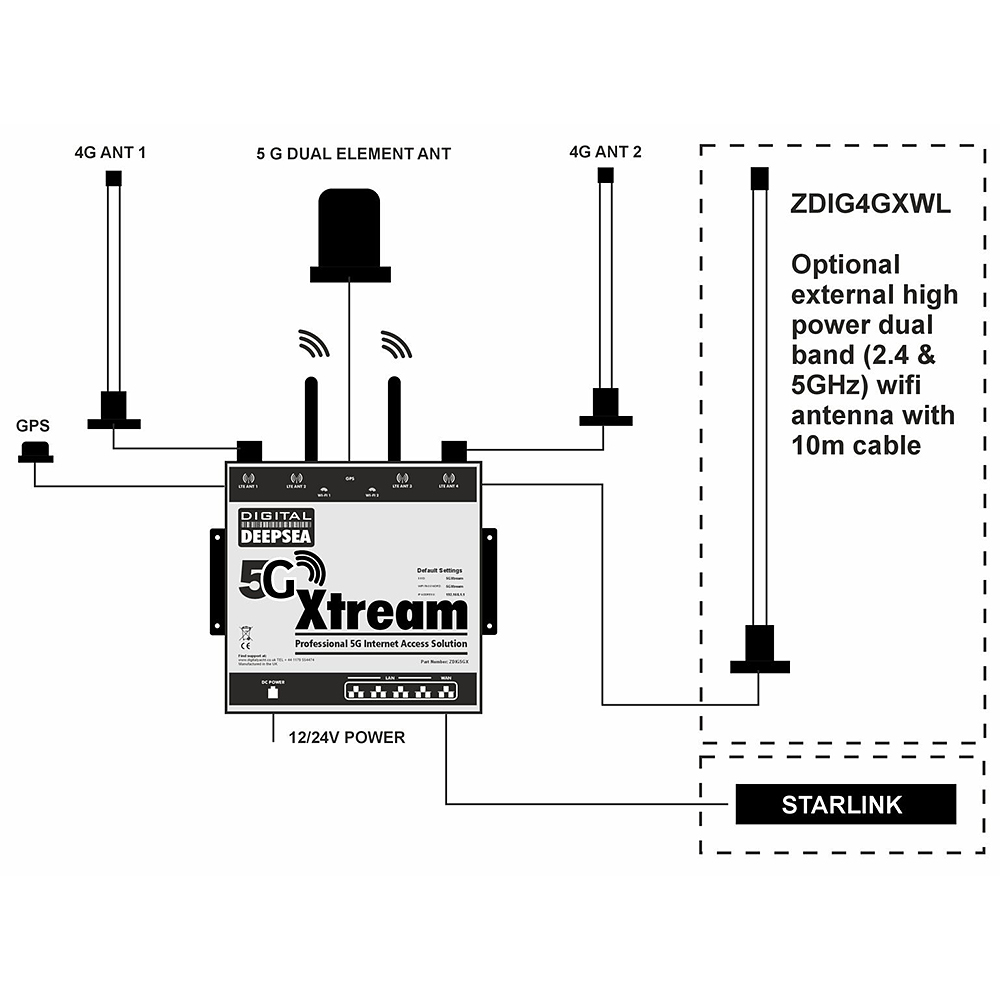

  • Two external, high gain, wide bandwidth antennas plus a compact high gain dome antenna for higher 5G frequencies
  • Dual band integrated wifi router (2.4 & 5 GHz) – independently configurable

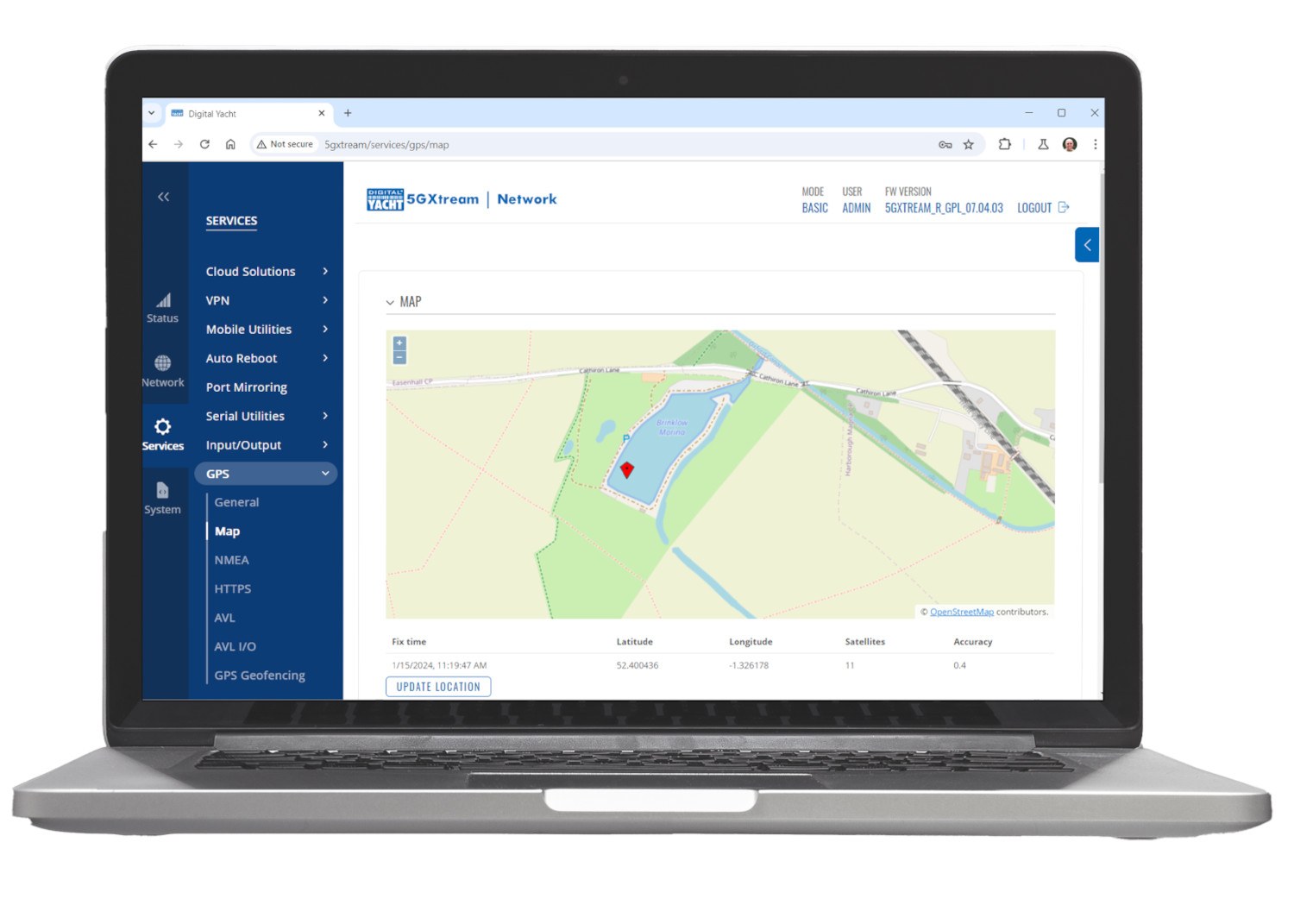

  • Built in GPS with external patch antenna for IOT and tracking/anchor alarm applications

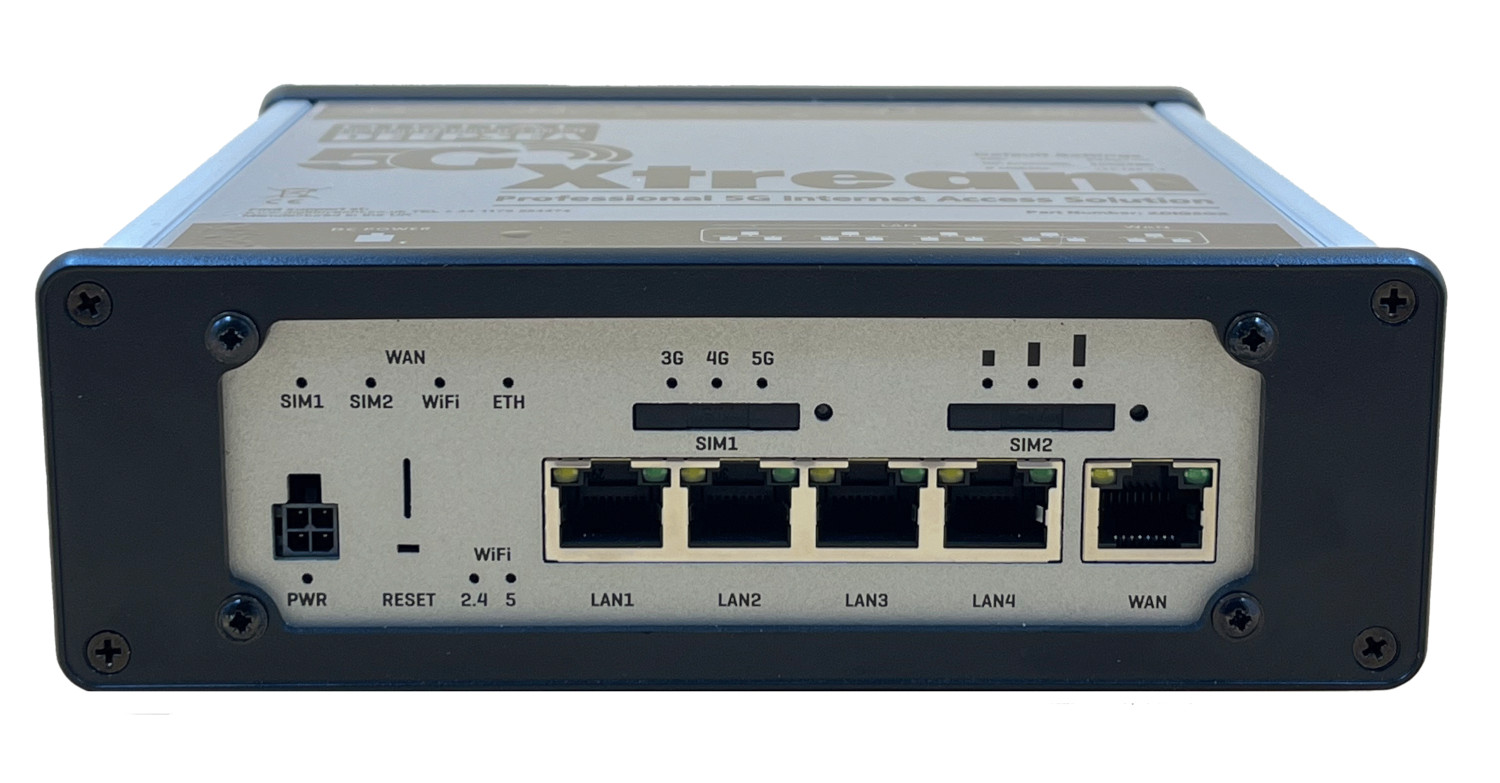

  • 4 x LAN ports
  • 1 x WAN port for additional internet connectivity – optimised for Starlink satellite systems
  • Digital input/output connectivity for IOT/control applications
  • SMS capability
  • 12/24v operation



SPECIFICATIONS

Power

Operating Temp

Physical

•-40 to +75 C

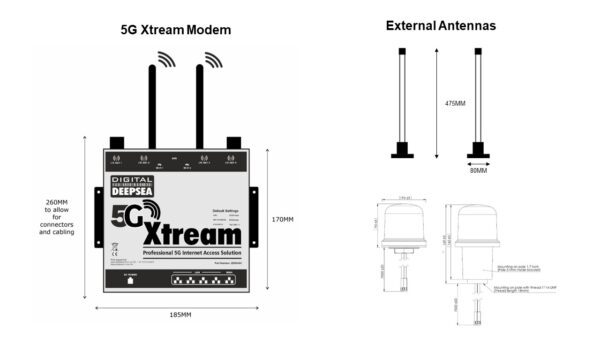

•Main unit: 180 x125 x 55mm (ex antennas)

•Weight 3,8 kg

•Protection IPX4

5G/LTE

Technology

3G/4G Fallback

4G & 5G Antennas

•5G Sub-6Ghz SA/NSA.  Up to 2.1/3.3Gbps downlink (4×4 MIMO)

•4G(LTE) CAT 20 up to 2GB/s

• Support bands:

5G (NSA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77

5G (SA): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78

4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32

4G (LTE-TDD): B38, B40, B41, B42, B43

•Dual Wi-Fi band independent 2.4 & 5 GHz (Maximum 150 connections)

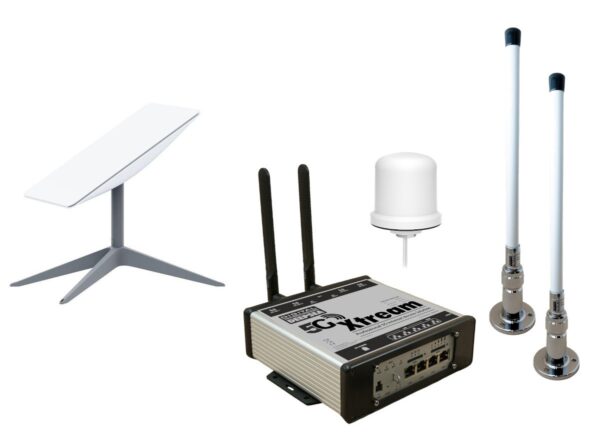

• Dual 48cm external wide band high gain MIMO supplied with 7m cables and mounting bases.  (10 & 20m options available) PLUS additional 100mm dome antenna for 4 x 4 MIMO operation and optimised for 5G (7m cable only)

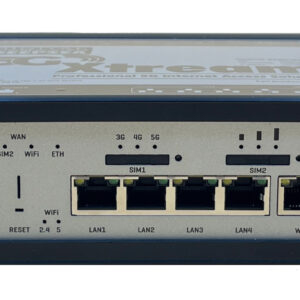

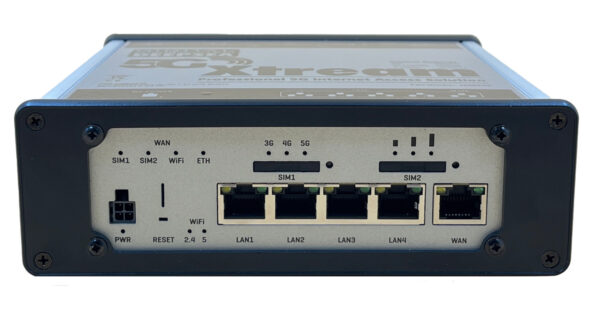

Interfaces •4 x LAN 10/100 Ethernet Port

•1 x WAN 10/100 Ethernet Port

•WiFi •802.11 b/g/n/ac
